Spectrum Calibration Microbeads

PolyAn’s Spectrum Calibration Beads are designed for calibration of flow cytometers and other fluorescence imaging systems. Each color-encoded PMMA bead population (peak) contains a mixture of fluorophores that allows performance validation at all wavelengths.

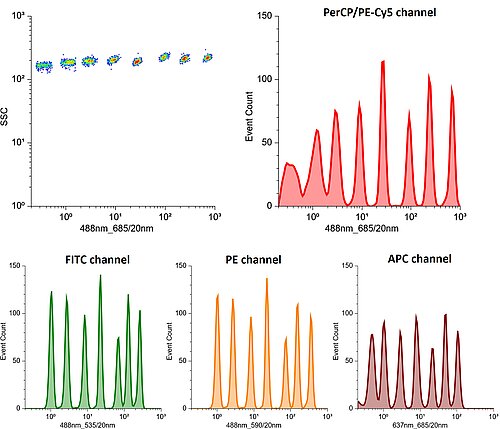

Spectrum Calibration Beads (8-peak) consisting of one transparent population (only detectable in FL3 ) and 7 fluorescent populations with increasing fluorophore content for all channels. Measurement with QA Quantum-P flow cytometer (excitation laser line at 488 nm).

Key features

  • Contains a mixture of fluorophores that enables the Spectrum Calibration Beads to be excited at any wavelength from 365 nm to 650 nm.
  • Fluorophores are homogeneously encapsulated in the PMMA matrix. Special shell prevents leaching of fluorophores.
  • Allows the calibration of the FITC, PE, PE-TR, PE-Cy5, and APC channels with the same set of particles.
  • Set of up to 8 similar size microparticle populations (peaks) with different fluorescence intensities. The fluorescence intensities in separate channels can be tailored to specific requirements, if needed.

Products

Id
Title
Solids Content
Id Title Solids Content
107 00 002 2 µm, Spectrum Flow Cytometer Calibration Beads, 8 populations (peaks) 0.15%
107 00 006 6 µm, Spectrum Flow Cytometer Calibration Beads, 8 populations (peaks) 0.15%
107 01 002 2 µm, Spectrum Flow Cytometer Calibration Beads, 5 populations (peaks) 0.15%
107 01 006 6 µm, Spectrum Flow Cytometer Calibration Beads, 5 populations (peaks) 0.15%
107 02 002 2 µm, Spectrum Flow Cytometer Calibration Beads, 1 population (peak) 0.15%
107 02 006 6 µm, Spectrum Flow Cytometer Calibration Beads, 1 population (peak) 0.15%
107 02 010 10 µm, Spectrum Flow Cytometer Calibration Beads, 1 population (peak) 0.15%
107 03 006 6 µm, Spectrum Flow Cytometer Calibration Beads - SCB 0.2.4, 1 population (peak) 0.15%
Request a quote for the selected products

Individual packaging, other sizes and alternative fluorescence intensities (peaks) are available upon request. Please contact our customer service for a custom development.

Selected Publications and References

  • Rosendahl, P. et al., `Real-time fluorescence and deformability cytometry´, Nat. Methods, 2018, 15, 355. DOI: 10.1038/nmeth.4639.

  • Volkmann, K.v. et al., "Comparison study of flow cytometers combining novel ultra-bright calibration particles with state-of-the-art characterization methods" (download poster here)
