Glass-bottom (multipart) Microplates

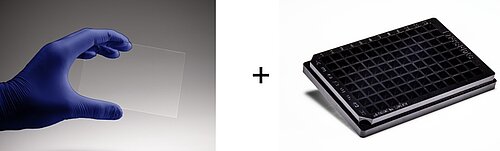

PolyAn’s multipart plates are comprised of a functionalized glass plate (75 x 110 mm, 1mm thickness) which is combined with a ProPlate superstructure after the printing process. This approach increases the printing throughput while minimizing errors due to electrostatic interactions or geometry.



96-well Multipart Plates (round wells)

Id
Surface Modifications
Format
Packaging Volume
Id Surface Modifications Format Packaging Volume
007 00 001 3D-Amino 96 Round MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 00 021 2D-Amino 96 Round MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 00 101 3D-Carboxy 96 Round MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 00 221 2D-Epoxy 96 Round MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 00 251 3D-Epoxy 96 Round MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 00 301 3D-Aldehyde 96 Round MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 00 451 3D-NHS 96 Round MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 00 501 Streptavidin 96 Round MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 00 551 Neutravidin 96 Round MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 00 621 2D-Azide 96 Round MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 00 951 3D-MTZ 96 Round MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
Request a quote for the selected products

96-well Multipart Plates (square wells)

Id
Surface Modifications
Format
Packaging Volume
Id Surface Modifications Format Packaging Volume
007 05 001 3D-Amino 96 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 05 021 2D-Amino 96 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 05 101 3D-Carboxy 96 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 05 221 2D-Epoxy 96 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 05 251 3D-Epoxy 96 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 05 301 3D-Aldehyde 96 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 05 451 3D-NHS 96 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 05 501 Streptavidin 96 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 05 551 Neutravidin 96 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 05 621 2D-Azide 96 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 05 951 3D-MTZ 96 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
Request a quote for the selected products

384-well Multipart Plates (square wells)

Id
Surface Modifications
Format
Packaging Volume
Id Surface Modifications Format Packaging Volume
007 10 001 3D-Amino 384 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 10 021 2D-Amino 384 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 10 101 3D-Carboxy 384 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 10 221 2D-Epoxy 384 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 10 251 3D-Epoxy 384 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 10 301 3D-Aldehyde 384 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 10 451 3D-NHS 384 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 10 501 Streptavidin 384 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 10 551 Neutravidin 384 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 10 621 2D-Azide 384 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
007 10 951 3D-MTZ 384 Square MultiWell Plate, Black Polystyrene, Glass Bottom 2 Plates/Box
Request a quote for the selected products

Key features:

  • Planar, dimensionally stable glass bottom for imaging applications
  • Optimal for imaging applications with demanding optical requirements
  • Option: use of type #1.5H coverslip glass for bottom
  • No cross-talk betwen wells
  • Superstructure and functionalized glass bottom can be provided separately for assembly after coating or printing.
  • Functionalized bottom plate can alternatively be comprised of glass, PMMA, COP and other plastics

Customized surfaces

Please do not hesitate to contact us, if you require a special surface for binding of your biomolecules that is not listed in the products table. We can also functionalise other plate formats and substrates with our surfaces. Additionally, we have access to a wide range of different surface modifications for binding of small molecules, saccharides etc.
